Taw qhia
Kab rov tav Monoblock Sewage Pump yog siv rau kev tawm mus tas li ntawm cov dej phwj hauv nroog, kev lag luam thiab hauv tsev. Nws siv cov qauv sib xyaw ua ke thiab tiv thaiv -clogging thev naus laus zis, uas ua rau nws ntseeg tau hauv kev ua haujlwm, ua tau zoo thiab tsis tshua muaj txij nkawm.
Qauv piav qhia
Piv txwv li:
NHS50.125A-M2/1.5V-AG-C
NHS - Series npe
50 - Nominal txoj kab uas hla (mm), xws li DN50
125 - Impeller code
A - Impeller code suffix (A, B, C qhia txawv impeller variants)
M - Lub cev muaj zog tivthaiv
2 - Tsav theem
1.5 - Lub cev muaj zog (kW)
V - Lub cev muaj zog: V=Variable- zaus lub cev muaj zog; E=tawg- pov thawj lub cev muaj zog; txheem motors yog unmarked
A - Cov khoom siv impeller: A=Alloy steel; S=0Cr19Ni9; O=Lwm cov ntaub ntawv
G - Pump lub cev khoom: D=QT500; G=HT200; S=0Cr19Ni9; O=Lwm cov ntaub ntawv
C - Cutter configuration: C=Nrog cutter taub hau; N=Tsis muaj lub taub hau txiav
Khoom nta
Tsawg clogging tus nqi
Lub semi- qhib kauv impeller ua ke nrog cov qauv tso tawm zawv zawg sai sai tshem tawm cov fibers thiab cov khoom tsis huv, txo qis qhov txhaws.
Txiav muaj nuj nqi
Nws tuaj yeem nruab nrog lub zog txiav impeller thiab txiav lub taub hau kom ua tau zoo shred daim ntaub strips, mos yas, thiab lwm yam khib nyiab.
Txhim khu kev sealing
Siv cov khoom siv hluav taws xob ruaj khov kom ntseeg tau tias tsis muaj dej pov tseg.
Stainless hlau impeller
Cov qauv kev teeb tsa muaj xws li stainless hlau impeller, uas yog corrosion-resistant thiab hnav-resistant.
Vim Li Cas Xaiv Peb
Peev Xwm Ntau Lawm: 15,000㎡ Hoobkas cheeb tsam, 5 cov kab ntau lawm, txhua xyoo tso zis ntawm 10,000 dej twj thiab 5,000 tshuab tshuab.
Quality Assurance: ISO 9001 thiab CE/TUV certified, tag nrho -txoj kev tswj kom zoo, 100% tiav cov khoom tsim nyog tus nqi.
Technology R&D: 20 engineers thiab 10 engineers, 15 patents, txhawb kev tsim khoom tshiab thiab tsis yog - tus qauv customization.
Supply Chain thiab Inventory: 50+ ntev- lub sij hawm xa khoom, cov khoom tseem ceeb tsim nyob rau hauv - tsev, cov khoom raw khoom ntau dua lossis sib npaug li 3 lub hlis ntawm kev tsim khoom.
Tom qab-Kev Pabcuam Muag: Muab 24-teev cov lus teb, 72-teev kev pabcuam ntawm qhov chaw, thiab kev txhawb nqa mus ntev.
Technical Data
| Fais fab mov | 3 φ 380V 50Hz |
| Hom kev ua haujlwm | S1 |
| Nruab nrab kub | 0-80 degree |
| Ambient kub | 0-40 degree |
| Qhov ntom | Tsawg dua 1.05 × 103kg / m3 |
| PH Scope | 5-9 |
| Txoj kev teeb tsa | kab rov tav installation |
Daim duab qauv
NHS tshiab hom kab rov tav dej twj tso kua mis
|
Tsis muaj. |
Lub npe |
Khoom siv |
|
1 |
Pem hauv ntej cover |
HT 200 |
|
2 |
Pump lub cev |
HT 200 |
|
3 |
O-ntiv |
NBR |
|
4 |
Cutter |
HT 200 / Alloy |
|
5 |
Impeller |
2 cr13 |
|
6 |
Mechanical foob |
SIC/SIB |
|
7 |
Rov qab cover |
HT 200 |
|
8 |
Kev sib txuas |
3 cr13 |
|
9 |
Bearing bracket |
HT 200 |
|
10 |
Lub cev muaj zog |
- |
|
11 |
Puag |
Q235 |
IHS Tsis yog{0}} dej kab rov tav twj tso kua mis
|
Tsis muaj. |
Lub npe |
Khoom siv |
|
1 |
Pem hauv ntej cover |
HT 200 |
|
2 |
Pump lub cev |
HT 200 |
|
3 |
O-ntiv |
NBR |
|
4 |
Cutter |
HT 200 / Alloy |
|
5 |
Impeller |
2 cr13 |
|
6 |
Skeleton roj foob |
NBR |
|
7 |
Rov qab cover |
HT 200 |
|
8 |
Mechanical foob |
SIC/SIB |
|
9 |
Bearing bracket |
HT 200 |
|
10 |
Lub cev muaj zog |
- |
|
11 |
Puag |
Q235 |
Performance Curve

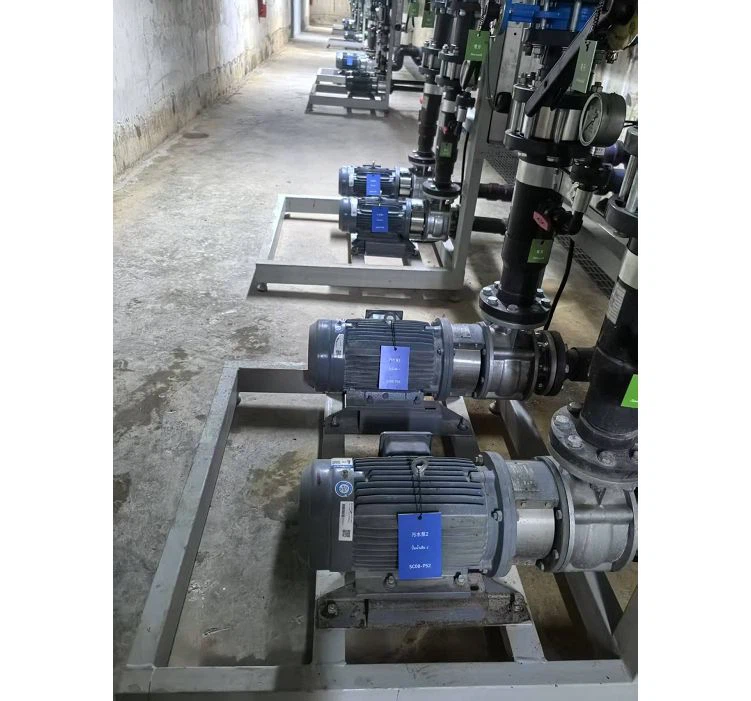

Daim duab installation
